SCR denitration catalyst calcination furnace equipment

Function: in the form of mesh belt furnace was carried out on the honeycomb catalyst calcination.
Calcination furnace technology parameter

ID	Name of parameter	Unit	Parameter		Notice
1	Product type	/	SCR Denitration Catalyst
2	Product standard	㎜	150×150×L
3	Daily output	m3	5-6
4	The product loading		Mesh Belt Lengthways
5	Loading height	mm	160
6	Sintering temperature temper	℃	500-630
7	Maximum tempreture	℃	700
8	Period	H	33±1		Adjustable according to the process
9	Total Length	m	53
10	Effective length	m	47
11	Section length	mm	2000
12	Outside width	mm	2360
13	Inside width	mm	1500
14	Effective width	mm	1360
15	Mesh width	mm	1360
16	Roller Specification	mm	Ф57
17	Roller space	mm	330
18	Kiln roller	Piece	141
19	Back roller space	mm	1000
20	Badk roller bar	bar	47
21	Qualified rate	％	95
22	Heating method	/	Electrical heating
23	Material of electric stove wire		Carbon fiber heating tube
24	Heating power	KW	360KW
25	Actual power	/	According to the process		General ≤150KW
26	Surface temperature of kiln	℃	≤50
27	Products consumption
28	Drive motor power	KW	3		Variablefrequency motor, control
29	Exhaust fan model		W9-26№5D/15KW		Frequency converting control
30	Exhaust fan material		SUS304
31	The exhaust pressure control
32	Point for measuring temperature	个	26
33	Number of sets of temperature control	组	12
34	Way of temperature control		Silicon controlled

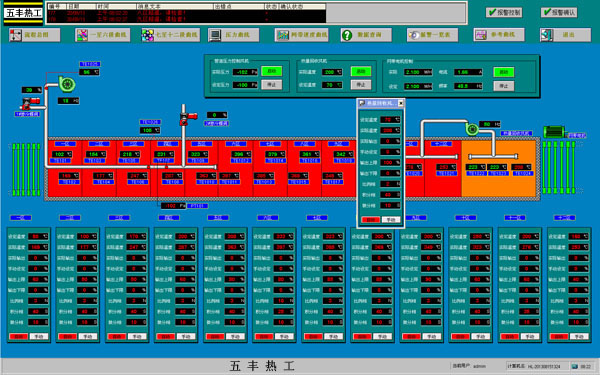

35	Control system		PLC	Siemens S7-300
36	Type of cooling		Preheater loop of the wind cooling (frequency converting control)	Ensure product temperature≤he environment emperature +50℃
37	Sulfur ammonia clean way		Provide 19 cleaning eye
38	Total power capacity	KW	About 380
